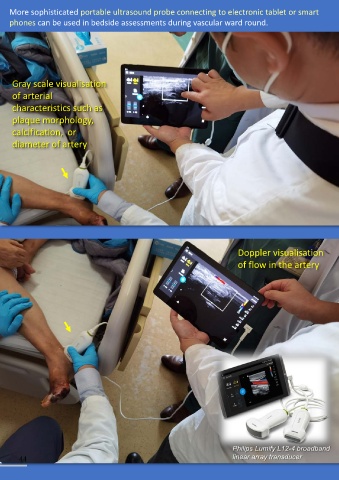

More sophisticated portable ultrasound probe connecting to electronic tablet or smart
phones can be used in bedside assessments during vascular ward round.
Duplex
Ultrasound
Gray scale visualisation
of arterial
characteristics such as
plaque morphology,
calcification, or
diameter of artery
Doppler visualisation
of flow in the artery
• Duplex scan consists of B-mode ultrasound to visualize the vascular structure together
with color-coded Doppler to evaluate the blood flow.
• It can be used for assessment of abdominal aortic aneurysm, carotid stenosis and
lower limb occlusive disease, as well as deep vein thrombosis and chronic venous
insufficiency.
